黑钻系列
像素间距(mm)：1.29/1.57/1.87/2.5/3.0
玫瑰系列LED显示屏是我司针对户外LED显示屏市场开发的高防护LED显示屏产品。
像素间距(mm):
1.95/2.6/1.95/3.91/4.44/5.7/6.67/8/10亮度：
5,000nits模组尺寸：
480x320x16mm/250x250x18mm
画面流畅无卡顿，观看体验极佳。
生动形象的显示画面，让你看到最自然、最真实的世界。
该产品采用共阴节能设计，减少了屏幕产生的热量，降低了屏幕温度，提高了稳定性和使用寿命。
IP65高防护等级，性能优异，可适应户外的各类恶劣环境。

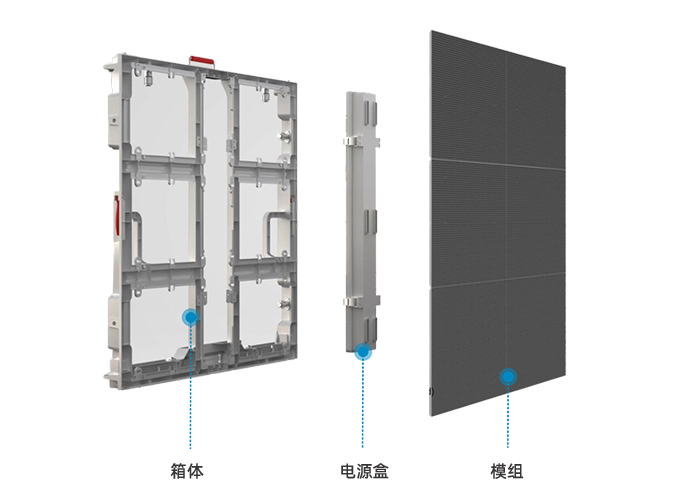

箱体框、电源盒、模组均采用模块化设计，支持前后维护，方便快捷。
| 型号 | P4.44 | P5.7 | P6.67 | P8 | P10 | P1.95 | P2.6 | P2.97 | P3.91 |
| 像素配置 | SMD | SMD | SMD | SMD | SMD | SMD | SMD | SMD | SMD |
| 像素间距(mm) | 4.44 | 5.7 | 6.67 | 8 | 10 | 1.95 | 2.6 | 1.95 | 3.91 |
| 箱体尺寸(mm)(WxHxD) | 480x320x16 | 480x320x16 | 480x320x16 | 480x320x16 | 480x320x16 | 250x250x18 | 250x250x18 | 250x250x18 | 250x250x18 |
| 箱体分辨率(WxH) | 108x72 | 86x56 | 72x48 | 60x40 | 48x32 | 128x128 | 96x96 | 84x84 | 64x64 |
| 箱体重量(kg/cabinet) | 25 | 25 | 25 | 25 | 25 | 16 | 16 | 16 | 16 |
| 刷新率(Hz) | 3840~7680 | 3840~7680 | 3840~7680 | 3840~7680 | 3840~7680 | 3840~7680 | 3840~7680 | 3840~7680 | 3840~7680 |
| 灰度等级(bit) | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| 亮度(nits) | 5,000~12,000 | 5,000~12,000 | 5,000~12,000 | 5,000~12,000 | 5,000~12,000 | 5,000 | 5,000 | 5,000 | 5,000 |
| 最大功耗(W/㎡) | ≤550 | ≤550 | ≤550 | ≤550 | ≤550 | ≤550 | ≤550 | ≤550 | ≤550 |
| 平均功耗(W/㎡) | ≤186 | ≤186 | ≤186 | ≤186 | ≤186 | ≤168 | ≤168 | ≤168 | ≤168 |
| 观看视角（H/V） | 140°/120° | 140°/120° | 140°/120° | 140°/120° | 140°/120° | 140°/120° | 140°/120° | 140°/120° | 140°/120° |
| 工作电压 | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz |
| 使用寿命(H) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| 型号 | P4.44 | P5.7 | P6.67 | P8 | P10 | P1.95 | P2.6 | P2.97 | P3.91 |
| 像素配置 | SMD | SMD | SMD | SMD | SMD | SMD | SMD | SMD | SMD |
| 像素间距(mm) | 4.44 | 5.7 | 6.67 | 8 | 10 | 1.95 | 2.6 | 1.95 | 3.91 |
| 箱体尺寸(mm)(WxHxD) | 480x320x16 | 480x320x16 | 480x320x16 | 480x320x16 | 480x320x16 | 250x250x18 | 250x250x18 | 250x250x18 | 250x250x18 |
| 箱体分辨率(WxH) | 108x72 | 86x56 | 72x48 | 60x40 | 48x32 | 128x128 | 96x96 | 84x84 | 64x64 |
| 箱体重量(kg/cabinet) | 25 | 25 | 25 | 25 | 25 | 16 | 16 | 16 | 16 |
| 刷新率(Hz) | 3840~7680 | 3840~7680 | 3840~7680 | 3840~7680 | 3840~7680 | 3840~7680 | 3840~7680 | 3840~7680 | 3840~7680 |
| 灰度等级(bit) | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| 亮度(nits) | 5,000~12,000 | 5,000~12,000 | 5,000~12,000 | 5,000~12,000 | 5,000~12,000 | 5,000 | 5,000 | 5,000 | 5,000 |
| 最大功耗(W/㎡) | ≤550 | ≤550 | ≤550 | ≤550 | ≤550 | ≤550 | ≤550 | ≤550 | ≤550 |
| 平均功耗(W/㎡) | ≤186 | ≤186 | ≤186 | ≤186 | ≤186 | ≤168 | ≤168 | ≤168 | ≤168 |
| 观看视角（H/V） | 140°/120° | 140°/120° | 140°/120° | 140°/120° | 140°/120° | 140°/120° | 140°/120° | 140°/120° | 140°/120° |
| 工作电压 | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz |
| 使用寿命(H) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
